FortiGate Static NAT using Port Forwarding / PAT

Easy in hindsight, but may be counter-intuitive for those coming from a Cisco or Palo Alto background such as myself.  There are two steps:

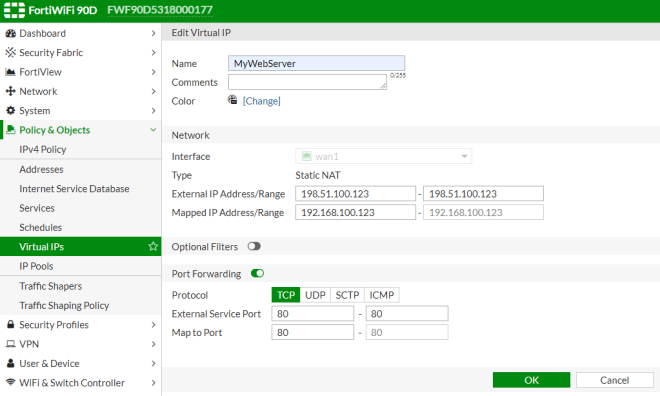

  1. Under Policy & Objects -> Virtual IPs, add a statement for each PAT rule with the “Port Forwarding” switch enabled at the bottom.

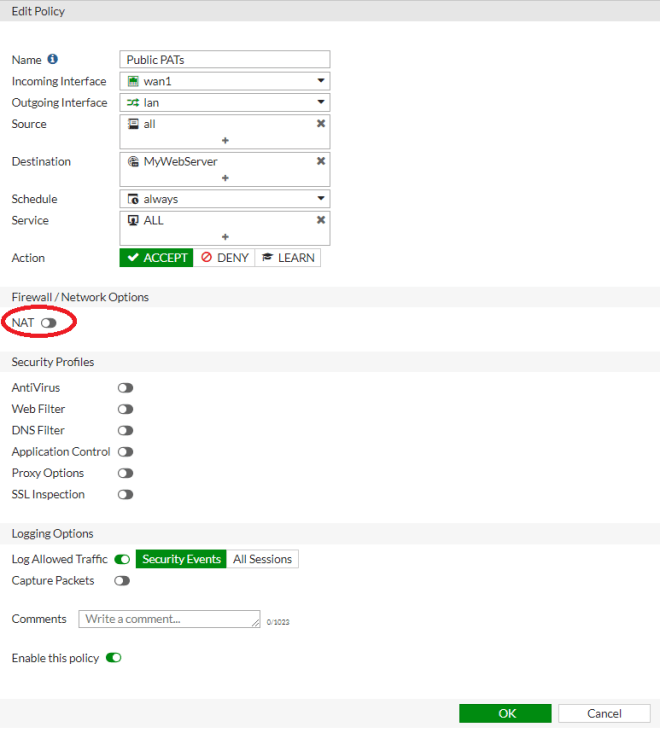

  2. Under Policy & Objects -> IPv4 Policy, add a rule from the public interface to the private interface with destination to be the object(s) created and service set to ALL.  NAT switch should remain disabled.

FortiGate_PAT_Virtual_IP

FortiGate_PAT_Rule
