VPN throughput Tests – Palo Alto VM-300 to GCP

I was doing a deep dive read of supported IKEv2 ciphers on GCP native VPNs today and thought I’d setup a quick lab to see which settings would provide best throughput. Lab setup was as follows:

  • Palo Alto VM-300 on m4.xlarge in us-east-2 (Ohio)
  • IKEv2 VPN to GCP us-east4 (N. Virginia)
  • Latency is a steady 13ms round trip time
  • AWS side test instance is t3.xlarge (4 vCPU / 16 GB RAM)
  • GCP side test instance is e2-standard-4 (4 vCPU / 16 GB RAM)
  • Both VMs running Ubuntu Linux 18.04.4
  • File is 500 MB binary file transfer via SCP

Throughput speeds (in Mbps) using DH Group 14 (2048-bit) PFS:

Encryption / HashSHA-512SHA-256SHA-1
AES-GCM 256-bit664668672
AES-GCM 128-bit648680704
AES-CBC 256-bit510516616
AES-CBC 192-bit492523624
AES-CBC 128-bit494573658
Average: 604 Mbps

Throughput speeds (in Mbps) using DH Group 5 (1536-bit) PFS:

Encryption / HashSHA-512SHA-256SHA-1
AES-GCM 256-bit700557571
AES-GCM 128-bit660676616
AES-CBC 256-bit464448656
AES-CBC 192-bit595528464
AES-CBC 128-bit605484587
Average: 574 Mbps

Throughput speeds (in Mbps) using DH Group 2 (1024-bit) PFS:

Encryption / HashSHA-512SHA-256SHA-1
AES-GCM 256-bit680626635
AES-GCM 128-bit672664680
AES-CBC 256-bit584452664
AES-CBC 192-bit536520664
AES-CBC 128-bit528502656
Average: 608 Mbps

Key Takeaways

GCP will prefer AES-CBC in their negotiations, but AES-GCM provides roughly 25% better throughput. So if throughput is paramount, be sure to have only AES-GCM in the IPSec profile.

If using AES-CBC, SHA-1, while deprecated, is 13% faster than SHA-256 and 25% faster than SHA-512. Since SAs are rebuilt every 3 hours, cracking isn’t as large a concern as in typical SHA-1 use cases.

DH Group does not affect speeds. May as well use the strongest mutually supported value, which is Group 14 (2048-bit). GCP does not support Elliptic Curve (Groups 19-21) so these couldn’t be tested. I would expect faster SA build times, but no change in transfer speeds.

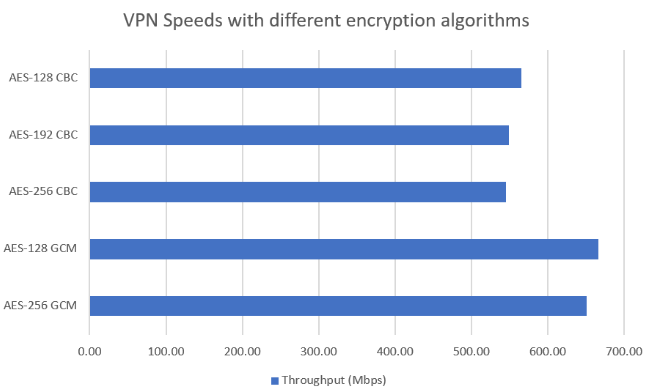

Assuming SHA-256 and Group 14 PFS, this graph summarizes the results:
